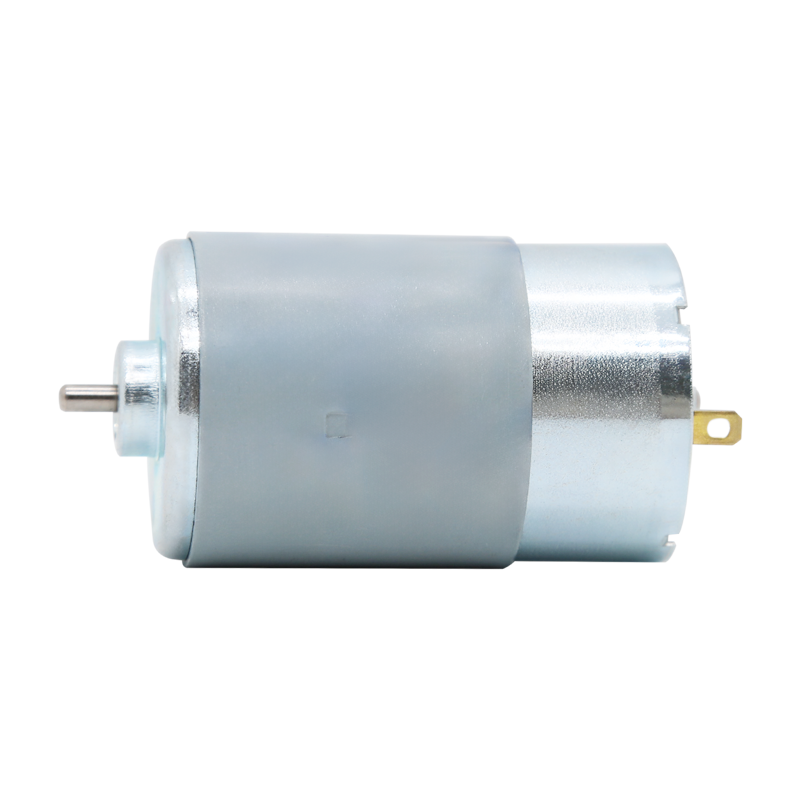

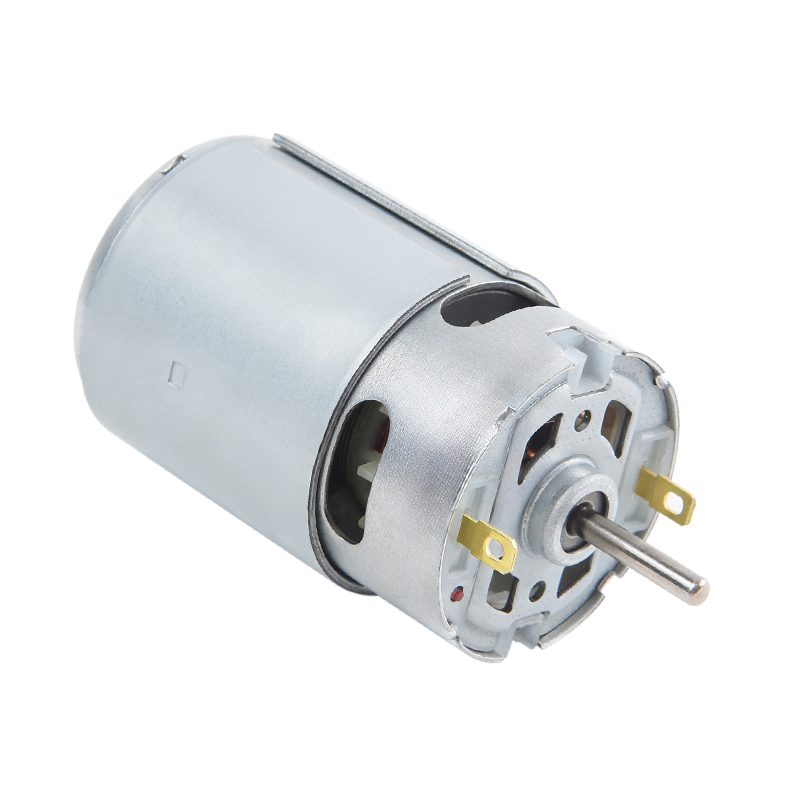

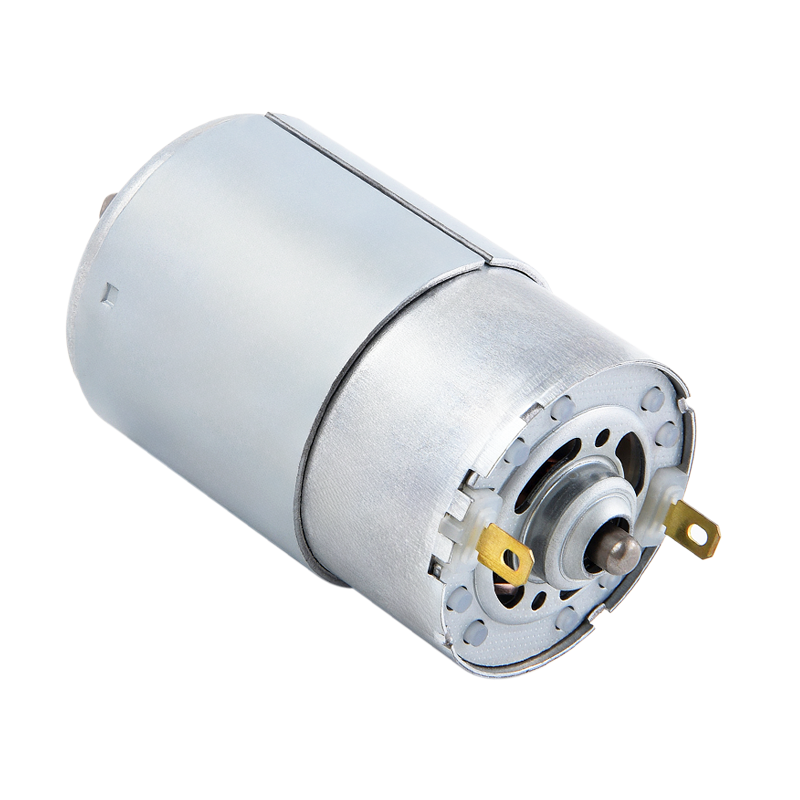

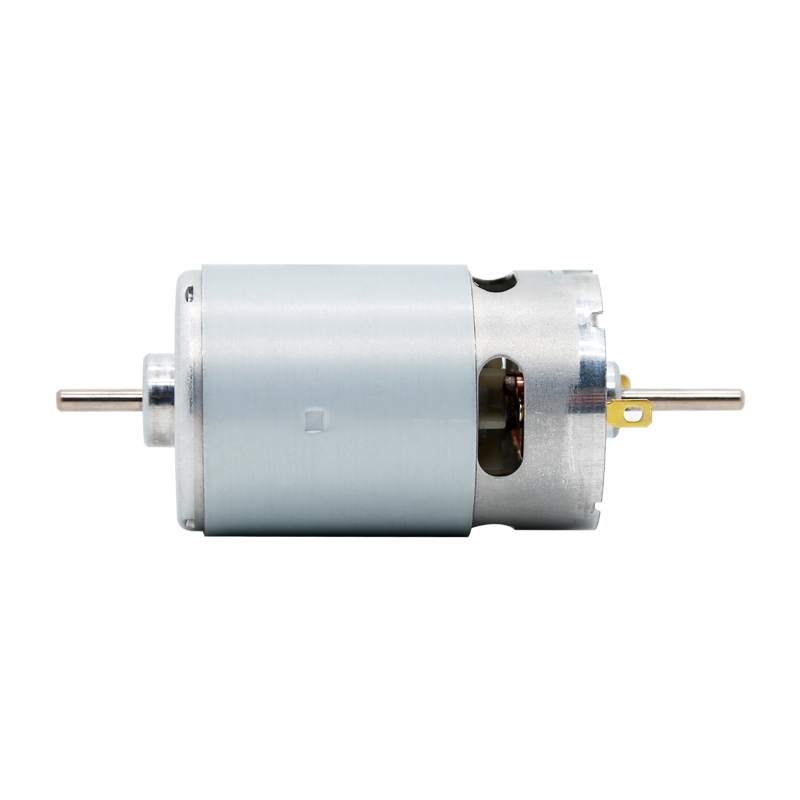

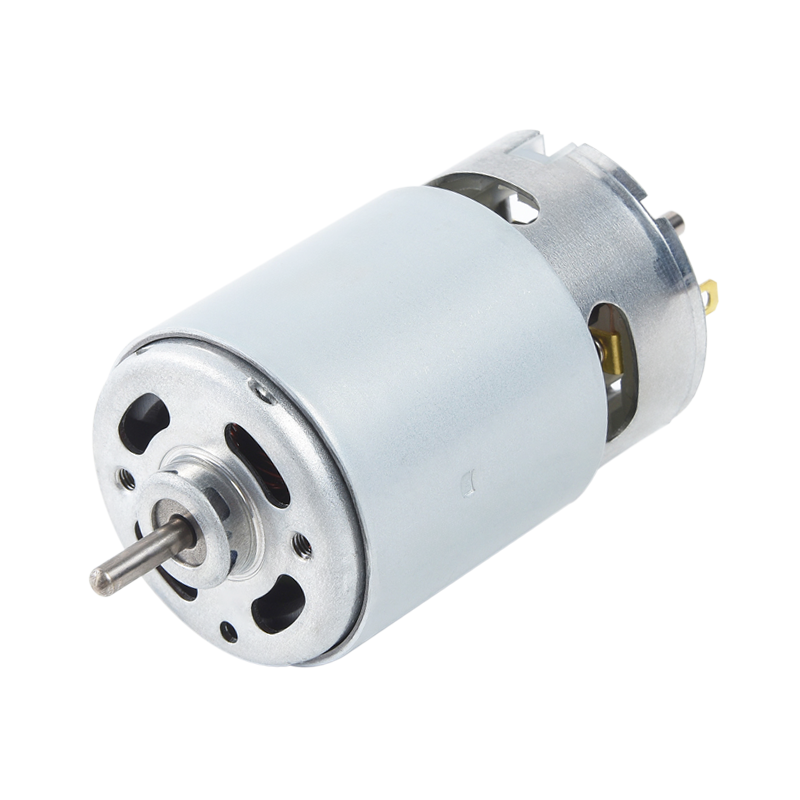

RS-555 DC Motor for electric curtains

RS555 in autocineto dc motore designatum est ad systema sagi electrici, instrumento automationis domestico destinatum. Featuring stable torque output, low operating noise and smooth speed performance, this motor provides reliable and quiet operation for automatic curtain opening and closing systems.
Constructed with high-quality pure copper windings and precision-balanced internal components, the 555 motor ensures long service life, stable current performance and efficient power transmission during continuous operation. Its compact structure allows easy integration into intelligent curtain rails and automated household systems where installation space is limited.
Compared with standard small DC motors, the 555 motor delivers stronger starting torque and smoother low-speed performance, making it especially suitable for electric curtain tracks requiring soft start and stable movement.
555 motor dc late in: Aeris Pump, Aqua Pump, Velum Automatic, Rapiens Robot, Triangulum Sander, Grout Cleaner

Contact Us RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains
  • RS-555 DC Motor for electric curtains

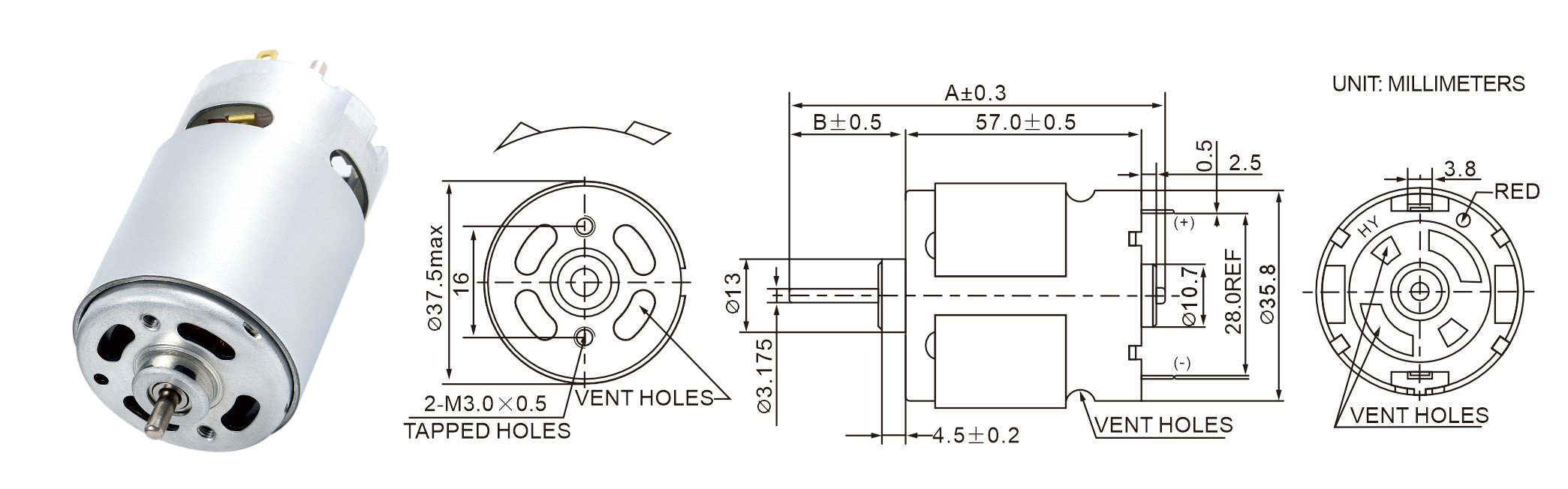

Specifications

Motor Longitudo:

57mm (praeter hastile)

Motor Diameter:

35.8mm (Speculum addere Magnet Ring: 38.5mm Max)

Hastile Longitudo:

Consuetudinem

Shaft Diameter:

3.175mm

Type hastile:

Round, D-Cut, Knurling, Thread, Ribbing, etc.

Voltage:

0-36V

Celeritas:

2000-0000RPM

Torque:

0-0.04N.m

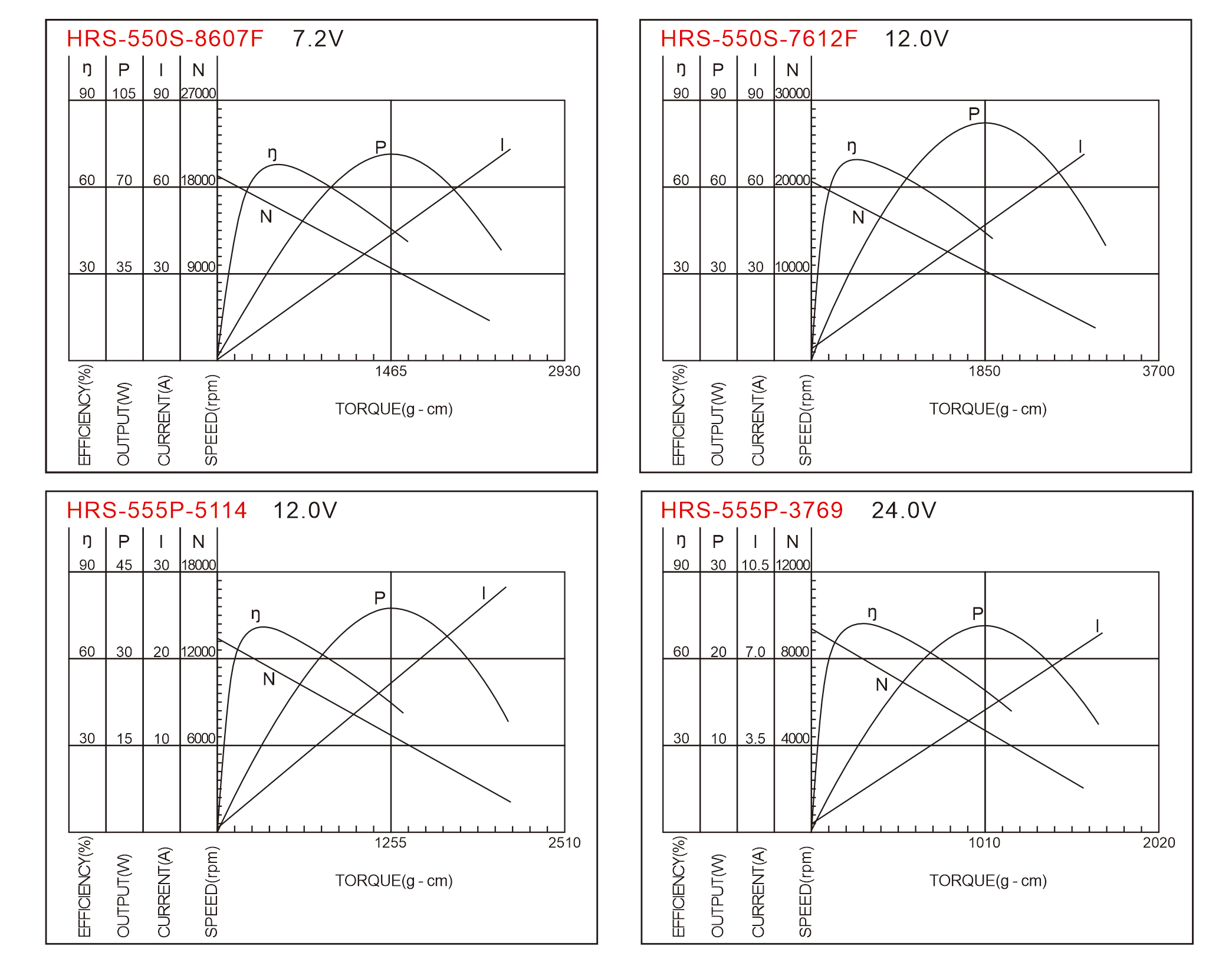

EXEMPLUM VOLTAGE NO PONDUS AD MAXIMUM PRAESTANTIA STABULUM
OPERATUR TRACTUS APPELLATIO SPEED Textus SPEED Textus TORQUE REFERO EFF Textus TORQUE
rpm A rpm A g-cm** mN-m** W % A g-cm** mN-m**
HRS-550S-8607F 3.0 - 9.0 7.2V CONSTANT 19000 1.9 15750 16.5 500 49 80.76 68 87.3 2924 286.6
HRS-550S-7612F 9.0 - 15.0 12.0V CONSTANT 20500 1.4 18000 10 450 44.1 83.07 69.2 72 3690 361.6
HRS-555P-5114 12.0 - 24.0 12.0V CONSTANT 13100 0.62 11400 4.2 325 31.85 38 75.4 28.3 2505 245.5
HRS-555P-3769 18.0 - 36.0 24.0V CONSTANT 9400 0.25 8000 1.4 300 29.4 24.61 73.2 8 2014 197.4

Interroga de venditionibus tuis repraesentativis per output, effectum, et EMC solutionem.
